Hydraulic Hose
Hydraulic Hose

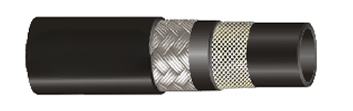

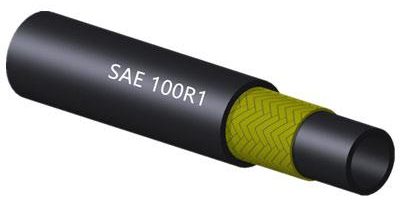

SAE 100 R1 AT/EN 853 1 SN
Application
HYDRAULIC SYSTEM WITH PETROLEUM OR WATER BASED FLUID & FOR FUEL AND LUBRICATING OILS.
Lining
BLACK OIL RESISTANT SYNTHETIC RUBBER COMPOUND.
Reinforcement
ONE HIGH TENSILE BRASS COATED STEEL WIRE BRAID.
Cover
ABRASION, OZONE AND WEATHER RESISTANT SYNTHETIC RUBBER COMPOUND.
Temp Range
-40°C TO 100°C. (INTERMITTENT USE UPTO 125°C.)
Impulse
1,50,000 Cycles
Range
ROBUST-HIGH ABRASION RESISTANT COVER

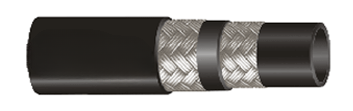

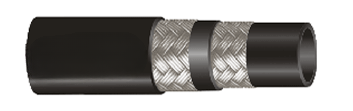

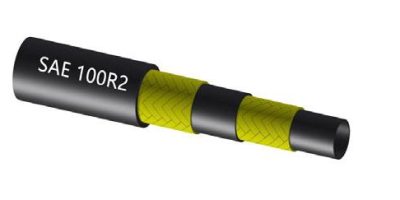

SAE 100 R2 AT/EN 853 2 SN
Application
HYDRAULIC SYSTEM WITH PETROLEUM OR WATER BASED FLUID & FOR FUEL AND LUBRICATING OILS
Lining
BLACK OIL RESISTANT SYNTHETIC RUBBER COMPOUND.
Reinforcement
TWO HIGH TENSILE BRASS COATED STEEL WIRE BRAIDS.
Cover
ABRASION, OZONE AND WEATHER RESISTANT SYNTHETIC RUBBER COMPOUND.
Temp Range
-40°C TO 100°C. (INTERMITTENT USE UPTO 125°C.)
Impulse
2,00,000 Cycles
Range
ROBUST-HIGH ABRASION RESISTANT COVER
HIGH TEMP. HYDRAULIC HOSE (RHT 1)
Application
HYDRAULIC APPLICATIONS USED FOR HIGH TEMP. MINERAL OIL AND DIESEL UPTO 90°C AND WATER BASE FLUID UPTO 120°C.
Lining
SPECIAL SYNTHETIC RUBBER COMPOUND RESISTANT TO OIL AND HIGH TEMP.
Reinforcement
ONE HIGH TENSILE BRASS COATED STEEL WIRE BRAID.
Cover
SYNTHETIC RUBBER COMPOUND – RESISTANT TO ABRASION,OZONE, OIL, HEAT AND WEATHER.
Temp Range
-40°C TO 150°C.
Impulse
1,50,000 Cycles
Range
ROBUST-HIGH ABRASION RESISTANT COVER
HIGH TEMP. HYDRAULIC HOSE (RHT 2)
Application
HYDRAULIC APPLICATIONS USED FOR HIGH TEMP. MINERAL OIL AND DIESEL UPTO 90°C AND WATER BASED FLUID UPTO 120°C.
Lining
SPECIAL SYNTHETIC RUBBER COMPOUND RESISTANT TO OIL AND HIGH TEMP.
Reinforcement
TWO HIGH TENSILE BRASS COATED STEEL WIRE BRAIDS.
Cover
SYNTHETIC RUBBER COMPOUND WITH ABRASION, OZONE, OIL, HEAT AND WEATHER RESISTANCE.
Temp Range
-40°C TO 150°C.
Impulse
2,00,000 Cycles
Range
ROBUST-HIGH ABRASION RESISTANT COVER.

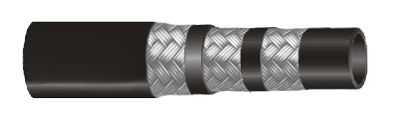

EXTRA HIGH PRESSURE (3EHP)
Application
AN ALTERNATIVE TO MULTI SPIRAL HYDRAULIC HOSE WHICH IS A RELATIVELY FLEXIBLE AND STURDY HIGH PRESSURE HOSE.
Lining
OIL RESISTANT SYNTHETIC RUBBER COMPOUND.
Reinforcement
THREE HIGH TENSILE STEEL WIRE BRAIDS.
Cover
SYNTHETIC RUBBER COMPOUND RESISTANT TO ABRASION,WEATHER & OZONE.
Temp Range
-40°C TO 100°C. (INTERMITTENT USE UPTO 120°C.)
Options
ROBUST-HIGH ABRASION RESISTANT COVER

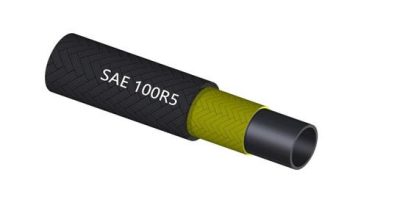

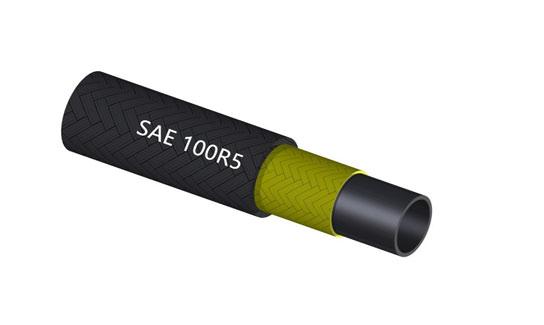

SAE 100 R5C
Application
HYDRAULIC SYSTEM WITH PETROLEUM OR WATER BASED FLUID & FOR FUEL AND LUBRICATING OILS.
Lining
OIL RESISTANT SYNTHETIC RUBBER COMPOUND.
Reinforcement
ONE TEXTILE BRAID & ONE HIGH TENSILE BRASS COATED STEEL WIRE BRAID.
Cover
OIL AND MILDEW RESISTANT RUBBER IMPREGNATED COTTON COVER
Temp Range
-40°C TO 100°C.
Range
UPTO 7/8 INCH(22.20mm) 1,50,000 Cycle From1-1/8 Inch(28.70mm)1,00,000 Cycle
SAE 100 R5R
Application
HYDRAULIC SYSTEM WITH PETROLEUM OR WATER BASED FLUID & FOR FUEL AND LUBRICATING OILS.
Lining
BLACK OIL RESISTANT SYNTHETIC RUBBER COMPOUND.
Reinforcement
ONE TEXTILE BRAID & ONE HIGH TENSILE BRASS COATED STEEL WIRE BRAID.
Cover
ABRASION,OZONE AND WEATHER RESISTANT SYNTHETIC RUBBER COMPOUND.
Temp Range
-40°C TO 100°C.
Impulse
-40°C TO 100°C.
Options
ROBUST-HIGH ABRASION RESISTANT COVER
MINING HOSE (EXCEEDS -BCS-174)
Application
UNDERGROUND MINING REQUIRING VERY STRINGENT SAFETY STANDARDS FOR LONG WALL MINING AND ROOF SUPPORT SYSTEMS.
Lining
OIL RESISTANT SYNTHETIC RUBBER COMPOUND.
Reinforcement
TWO HIGH TENSILE BRASS COATED STEEL WIRE BRAIDS.
Cover
SYNTHETIC RUBBER COMPOUND RESISTANT TO ABRASION,OZONE WEATHER AND FLAME.
Temp Range
-40°C TO 120°C.
Impulse Cycles
1,00,000 Cycles
SAE 100 R3/EN 854 R3
Application
HYDRAULIC SYSTEM WITH PETROLEUM OR WATER BASED FLUID & FOR FUEL AND LUBRICATING OILS
Lining
BLACK OIL RESISTANT SYNTHETIC RUBBER COMPOUND.
Reinforcement
TWO BRAIDS OF HIGH TENACITY TEXTILE YARN.
Cover
SYNTHETIC RUBBER COMPOUND WITH ABRASION,OZONE AND WEATHER RESISTANCE.
Temp Range
-40°C TO 100°C. (INTERMITTENT USE UPTO 110°C.)
Impulse
2,00,000 Cycles
Options
ROBUST-HIGH ABRASION RESISTANT COVER

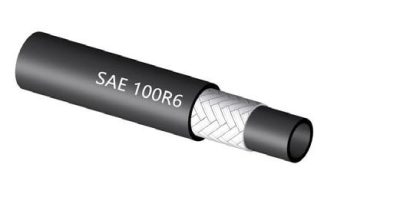

SAE 100 R6/EN 854 R6
Application
LOW PRESSURE HYDRAULIC OILS, FUEL, LUBRICATING OIL, ANTI-FREEZE SOLUTION AND WATER.
Lining
BLACK OIL RESISTANT SYNTHETIC RUBBER COMPOUND.
Reinforcement
ONE BRAID OF SUITABLE TEXTILE YARN.
Cover
SYNTHETIC RUBBER COMPOUND WITH ABRASION,OZONE AND WEATHER RESISTANCE..
Temp Range
-40°C TO 100°C. (INTERMITTENT USE UPTO 110°C.)
Options
ROBUST-HIGH ABRASION RESISTANT COVER
EVEREST HOSE
Application
SUPER IMPULSE HOSE FOR HEAVY DUTY HYDRAULIC SYSTEM WITH PETROLEUM OR WATER BASED FLUID.
Lining
OIL RESISTANT SYNTHETIC RUBBER COMPOUND.
Reinforcement
TWO HIGH TENSILE BRASS COATED STEEL WIRE BRAID.
Cover
SYNTHETIC RUBBER COMPOUND RESISTANT TO ABRASION, WEATHER & OZONE.
Temp Range
-40°C TO 100°C. (INTERMITTENT USE UPTO 120°C.)
Impulse
3,00,000 Cycles
Options
ROBUST-HIGH ABRASION RESISTANT COVER
JCB HYDRAULIC HOSE
Application
AN ALTERNATIVE TO MULTI SPIRAL HYDRAULIC HOSE WHICH IS A RELATIVELY FLEXIBLE AND STURDY HIGH PRESSURE HOSE.
Lining
BLACK OIL RESISTANT SYNTHETIC RUBBER COMPOUND.
Reinforcement
ONE BRAID OF SUITABLE TEXTILE YARN.
Cover
SYNTHETIC RUBBER COMPOUND WITH ABRASION,OZONE AND WEATHER RESISTANCE..
Temp Range
-40°C TO 100°C. (INTERMITTENT USE UPTO 110°C.)
Options
ROBUST-HIGH ABRASION RESISTANT COVER
JIC
90° JIC FEMALE 37° SEAT LONG DROP
JIC MALE 37° CONE
JIC FEMALE 37° CONE
JIC FEMALE 37° CONE DOUBLE HEX
45° JIC FEMALE 37° SEAT
90° JIC FEMALE 37° SEAT
JIC FEMALE 37° SEAT SLIP-ON NUT
90° JIC FEMALE 37° SEAT SLIP-ON NUT
90° JIC FEMALE 37° SEAT COMPACT
ORFS
ORFS MALE
ORFS FEMALE
45° ORFS FEMALE
90° ORFS FEMALE
NPTF, NPSM, SAE
NPT MALE
NPT MALE SWIVEL
SAE MALE 45° CONE
SAE O-RING MALE
SAE INVERTED FLARE
FLANGE
FLANGE CODE 61
45° FLANGE CODE 61
90° FLANGE CODE 61
FLANGE CODE 61 LONG DROP
FLANGE CODE 62
FLANGE CODE 62 LONG DROP
45° FLANGE CODE 62
